VMC Series Vertical Machining Centers 650 850 855 966

Precision Engineering for Modern Manufacturing

Product Overview

The VMC series combines high-performance machining with robust structural design, ideal for precision parts production in aerospace, automotive, mold making, and general engineering industries. Featuring vertical configurations, all models integrate Taiwan-funded components and Japanese numerical control systems to ensure stability and accuracy.

Model Highlights & Differentiations

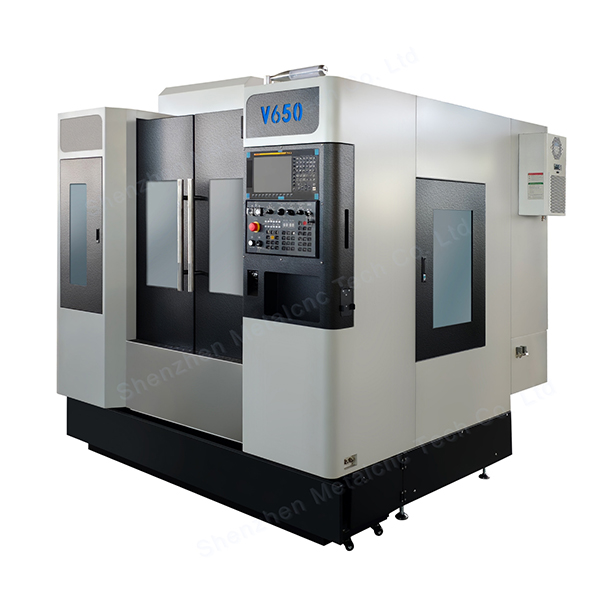

1. VMC650: Compact High-Efficiency Machining

Key Features: 600×500×500mm travel range, BT40 spindle (8000-12000rpm), and 48m/min fast feed speed.

Advantage: Compact footprint (2200×2150×2300mm) suitable for small-to-medium workpieces, with 400kg workbench load capacity.

Ideal For: Prototyping, electronics components, and precision mechanical parts.

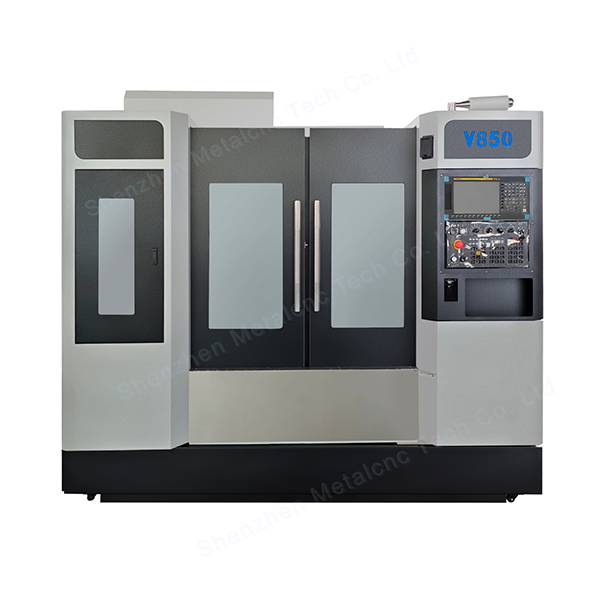

2. VMC850: Balanced Performance for Versatile Applications

Key Features: 1000×500mm workbench, 150-650mm spindle nose clearance, and HF-204S servo motors.

Advantage: Enhanced X-axis travel (unspecified in doc, inferred for versatility) and 4500kg net weight for stable heavy-duty cutting.

Ideal For: Medium-sized metal parts, mold bases, and batch production.

3. VMC855: Upgraded Rigidity for Heavy Machining

Key Features: 800×550×550mm travel, 500kg workbench load, and roller tracks (35-45-45mm width).

Advantage: 150mm spindle diameter and belt-driven transmission for high torque in steel/hard metal processing.

Ideal For: Large mold components, gear machining, and heavy metal fabrication.

4. VMC966: High-Capacity Precision Machining Center

Key Features: 1000×600mm workbench, 600kg load capacity, and 600×600mm Z-axis travel.

Advantage: Largest model (2650×2300×2560mm) with β12 spindle motor for complex 3D contouring and large-part processing.

Ideal For: Aerospace components, heavy machinery parts, and high-volume production.

Shared Technical Advantages

Structural Rigidity: HT-300+ cast iron frames reduce vibration, ensuring <±0.003mm positioning accuracy (JIS6338).

Efficient Tooling: 24-tool arm-type ATC (Okada/Aimach) enables rapid tool changes for minimized cycle times.

Intelligent Control: Mitsubishi/FANUC CNC systems support high-speed machining and complex program execution.

Reliable Components: Taiwan-funded lubrication systems, Airtac pneumatic components, and Schneider electrical parts ensure long-term durability.

Optional Upgrades

Chain chip removal system for automated debris management.

High-pressure cooling systems for improved tool life in deep cutting.

Fourth-axis rotary table for multi-face machining capabilities.

Why Choose VMC Series?

Versatility: From small parts to large-scale components, all models adapt to diverse manufacturing needs.

Precision: Consistently achieves Ra surface roughness ≤0.8μm for high-quality finishes.

Cost-Effective: Balanced performance-to-price ratio with low maintenance requirements.

Contact us for custom configurations or technical specifications tailored to your production needs!
