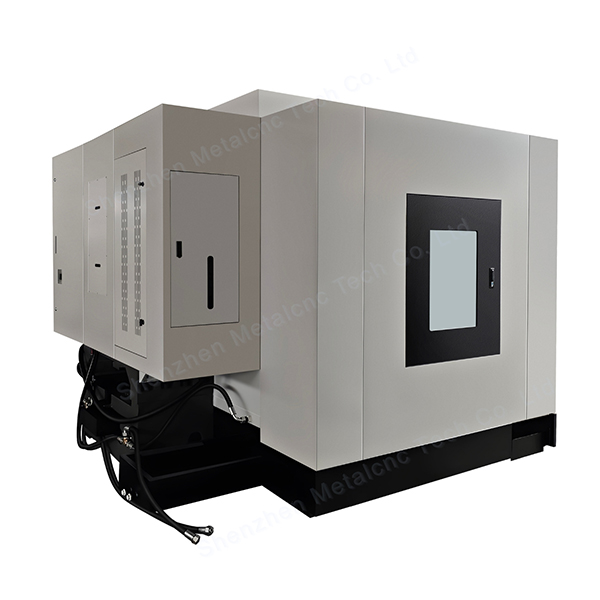

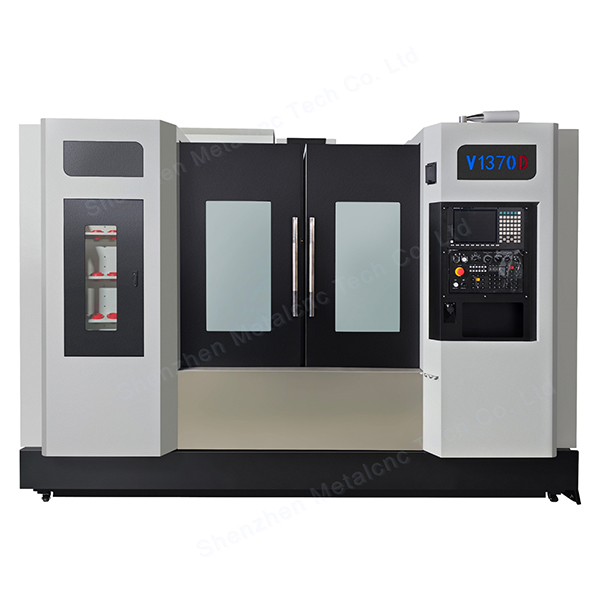

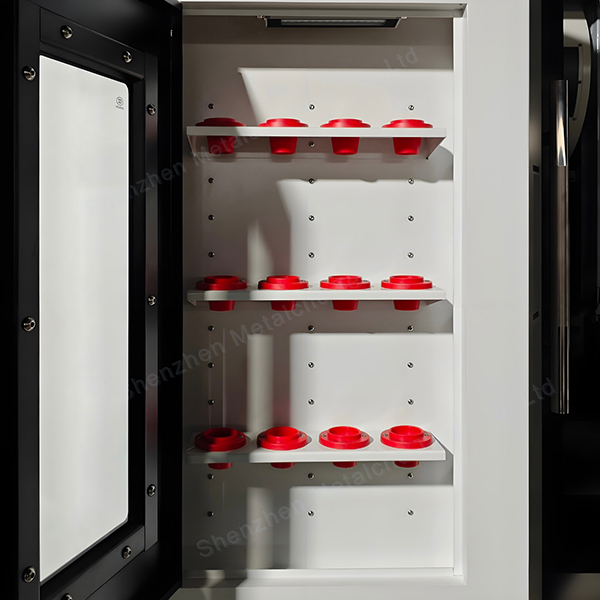

Product Overview
Three heavy-duty vertical machining centers built with HT-300 cast iron frames, ideal for large-part precision machining in automotive, aerospace, and mold industries. Equipped with BT40 spindles, 24-tool ATC systems, and Mitsubishi/FANUC CNC controls for reliable performance.
Model Highlights
Model | Key Features | Applications |
VMC1370 | - 1300×700×700mm travel range | Medium-sized parts, general machining |
VMC1375 | - 750mm Y-axis travel (+50mm vs VMC1370) | Wide-format components, mold bases |
VMC1380 | - 800mm Y-axis (max in series) | Large aerospace parts, heavy molds |
Shared Technical Advantages
• Precision: ±0.003mm positioning accuracy (JIS6338), surface roughness ≤Ra0.8μm
• Reliability: NACHI bearings, roller guide rails, and Schneider electrical components
• Efficiency: 24-tool arm-type ATC (Okada/Aimach) with ≤1.8s tool change time
Optional Upgrades
• Chain chip conveyor system
• 4th-axis rotary table for multi-face machining
• High-pressure cooling system
Key Benefits
• Scalable Y-axis: 700-800mm travel adapts to various workpiece widths
• Heavy Load Capacity: Up to 1000kg for large components
• Global Compatibility: Mitsubishi/FANUC controls for easy programming
Inquire for detailed specs or custom configurations!
Technical Parameters | Units | VMC1370 | VMC1375 | VMC1380 |
Machine Type and Structure | Vertical machining center | Vertical machining center | Vertical machining center | |
Machine Castings | KBR | HT-300 | HT-300 | HT-300 |
X-axis Travel | mm | 1300 | 1300 | 1300 |
Y-axis Travel | mm | 700 | 750 | 800 |
Z-axis Travel | mm | 700 | 700 | 700 |
Spindle Nose to Table | mm | 100-800 | 100-800 | 223-923 |
Spindle Center to Column Rail | mm | 773 | 772 | 882 |
Bench Type | Standard workbench | Standard workbench | Standard workbench | |
Workbench Dimensions | mm | 18x5x110 | 18x7x100 | 18x7x110 |
Workbench Division | mm | 1400*700 | 1400*700 | 1400*800 |
Maximum Workbench Load | kg | 800 | 900 | 1000 |
Three-axis Track Design | Type | Roller | Roller | Roller |
Three-axis Track Width | mm | 45-45-45 | 45-55-45 | 50-50-50 |
Three-axis Track Slider | 6-8-6 | 6-4-6 | 6-8-6 | |
Three-axis Track Diameter | mm | 45-45-45 | 40-40-40 | 50-50-50 |
Three-axis Orbital Pitch | mm | P=12-12-12 | P=12-12-12 | P=10-10-10 |
Three-axle Bearing | NACHI | NACHI | NACHI | |
Spindle | Cells /Volis | Cells /Volis | Cells /Volis | |
Spindle Taper Bore | BT40 | BT40 | BT40 | |
Spindle Diameter | mm | 150 | 150 | 150 |
Transmission Type | Belt | Belt | Belt | |
Spindle Speed | rpm | 8000-12000 | 8000-12000 | 6000-8000 |
G00 Fast Feed (X/Y/Z) | m/min | 20/20/20 | 36/36/36 | 30/30/30 |
G00 Cutting Feed | m/min | 1-10000 | 1-10000 | 1-10000 |
Recommended servo motor specifications | Kilowatt | 3.0 x3.0x3.5 | 3.0 x3.0x3.5 | 3.0 x3.0x3.5 |
Positioning Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 |
Reproduction Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 |
ATC Capacity | pcs | Arm Type-24 tools | Arm Type-24 tools | Arm Type-24 tools |
ATC Brand | Okada/Aimach | Okada/Aimach | Okada/Aimach | |
Automatic Lubrication System | HERG/Baoton | HERG/Baoton | HERG/Baoton | |
Knife Cylinder | Airtac/Haocheng | Airtac/Haocheng | Airtac/Haocheng | |
Three-axis Shroud | Liuding | Liuding | Liuding | |
Numerical Control System | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | |
Recommended X/Y Axis Servo Motor | model | HF-303S/β22 | HF-303S/β22 | HF-303S/β22 |
Recommended Z-axis Servo Motor | model | HF-303BS/β22 | HF-303BS/β22 | HF-303BS/β22 |
Recommended Spindle Motor | model | SJ-V11/β12 | SJ-V11/β12 | SJ-V11/β12 |
Electricity demand | Kilovolt-ampere | Kilovolt-ampere | Kilovolt-ampere | |
Machine Net Weight | kg | 7400 | 7500 | 8200 |
Body Dimensions (L×W×H) | mm | 3550×2800×2700 | 3550×2800×2700 | 4400×3300×3300 |
Bottom Plate Chip | √ (made in China) | √ (made in China) | √ (made in China) | |
Manual Chip Removal Tank | √ (made in China) | √ (made in China) | √ (made in China) | |
Outer Protective Cover | √ (made in China) | √ (made in China) | √ (made in China) | |
Cooling Pump | W | 750W Wesson | 750W Wesson | 750W Wesson |
Electrical Component | Schneider | Schneider | Schneider | |
Machine Tool Heat Exchanger | √ (made in China) | √ (made in China) | √ (made in China) | |
Pneumatic Triplet | Yadek | Yadek | Yadek | |
Oil Cooler | Diort | Diort | Diort | |
Chain Chip Removal Machine | Optional (made in China) | Optional (made in China) | Optional (made in China) |
