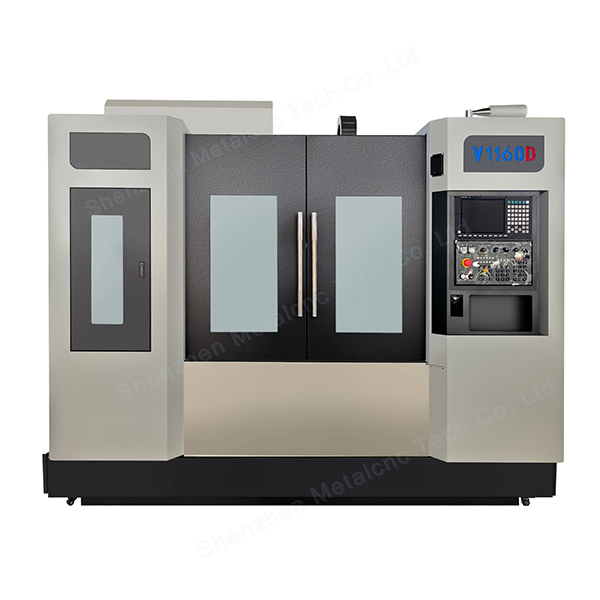

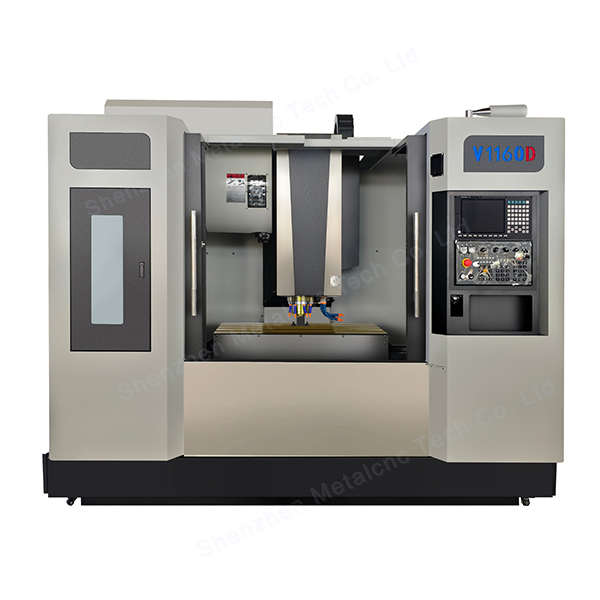

Product Overview
HT-300 cast iron vertical machining centers with BT40 spindle and 24-tool ATC, ideal for automotive, mold, and aerospace applications. Equipped with Mitsubishi/FANUC CNC and premium components for precision and durability.
Model Highlights
Model | Key Features | Applications |
V1160/VMC1160/V1160D | 1100mm X-axis, 1200×600mm table (800kg), 120-720mm spindle nose travel | Long parts, construction machinery |
VMC1165 | 650mm Y-axis (+50mm vs VMC1160), 697mm spindle center, compact design | Wide mold bases, aluminum frames |
VMC1170 | 700mm Y/Z-axis, 1200×700mm table (800kg), 3200×2800×2900mm body | Large molds, aerospace components |
Shared Advantages
• Precision: ±0.003mm JIS6338 accuracy, Ra≤0.8μm surface finish
• Performance: 8000-12000rpm spindle, 36m/min fast feed, 24-tool ATC (Okada/Aimach)
• Components: Roller guides, NACHI bearings, Schneider electrics
Options

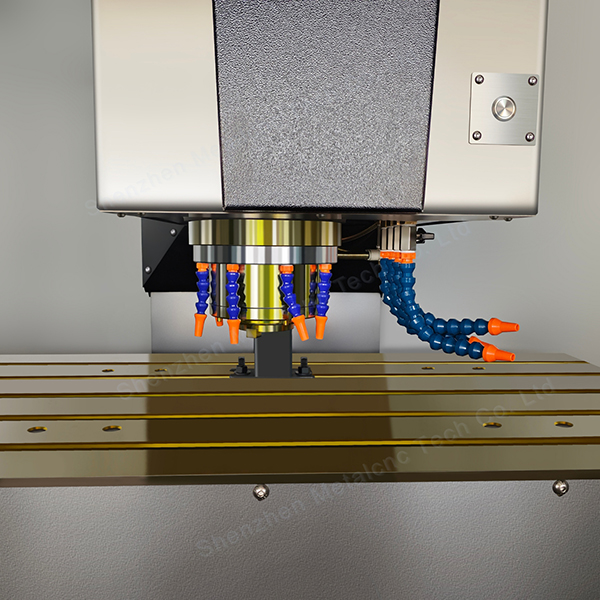

• Chain chip conveyor, 4th-axis rotary table, high-pressure cooling
Benefits
• Scalable Y-axis (600-700mm) for diverse workpiece sizes
• Heavy-duty design (6500kg net weight) for stable operation
• Cost-effective with low maintenance
Contact for model-specific configurations!
Technical Parameters | Units | V1160/VMC1160/V1160D | VMC1165 | VMC1170 |
Machine Type and Structure | Vertical machining center | Vertical machining center | Vertical machining center | |
Machine Castings | KBR | HT-300 | HT-300 | HT-300 |
X-axis Travel | mm | 1100 | 1000 | 1100 |
Y-axis Travel | mm | 600 | 650 | 700 |
Z-axis Travel | mm | 600 | 600 | 700 |
Spindle Nose to Table | mm | 120-720 | 120-720 | 120-820 |
Spindle Center to Column Rail | mm | 673 | 697 | 772 |
Bench Type | Standard workbench | Standard workbench | Standard workbench | |
Workbench Dimensions | mm | 18x5x100 | 18x5x100 | 18x5x100 |
Workbench Division | mm | 1200*600 | 1200*600 | 1200*700 |
Maximum Workbench Load | kg | 800 | 800 | 800 |
Three-axis Track Design | Type | Roller | Roller | Roller |
Three-axis Track Width | mm | 45-45-45 | 45-45-45 | 45-45-45 |
Three-axis Track Slider | 6-4-6 | 6-4-6 | 6-4-6 | |
Three-axis Track Diameter | mm | 40-40-40 | 40-40-40 | 40-40-40 |
Three-axis Orbital Pitch | mm | P=12-12-12 | P=12-12-12 | P=12-12-12 |
Three-axle Bearing | Nahel | NACHI | NACHI | |
Spindle | Cells /Volis | Cells /Volis | Cells /Volis | |
Spindle Taper Bore | BT40 | BT40 | BT40 | |
Spindle Diameter | mm | 150 | 150 | 150 |
Transmission Type | Belt | Belt | Belt | |
Spindle Speed | rpm | 8000-12000 | 8000-12000 | 8000-12000 |
G00 Fast Feed (X/Y/Z) | m/min | 36/36/36 | 36/36/36 | 36/36/36 |
G00 Cutting Feed | m/min | 1-10000 | 1-10000 | 1-10000 |
Positioning Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 |
Reproduction Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 |
ATC Capacity | pcs | Arm Type-24 tools | Arm Type-24 tools | Arm Type-24 tools |
ATC Brand | Okada/Aimach | Okada/Aimach | Okada/Aimach | |
Automatic Lubrication System | HERG/Baoton | HERG/Baoton | HERG/Baoton | |
Knife Cylinder | Airtac/Haocheng | Airtac/Haocheng | Airtac/Haocheng | |
Three-axis Shroud | Liuding | Liuding | Liuding | |
Numerical Control System | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | |
Recommended X/Y Axis Servo Motor | model | HF-303S/β22 | HF-303S/β22 | HF-303S/β22 |
Recommended Z-axis Servo Motor | model | HF-303BS/β22 | HF-303BS/β22 | HF-303BS/β22 |
Recommended Spindle Motor | model | SJ-V11/β12 | SJ-V11/β12 | SJ-V11/β12 |
Electricity demand | KVA | Kilovolt-ampere | Kilovolt-ampere | |
Machine Net Weight | kg | 6500 | 6500 | 6500 |
Body Dimensions (L×W×H) | mm | 2900×2500×2600 | 2900×2500×2460 | 3200×2800×2900 |
Bottom Plate Chip | √ (made in China) | √ (made in China) | √ (made in China) | |
Manual Chip Removal Tank | √ (made in China) | √ (made in China) | √ (made in China) | |
Outer Protective Cover | √ (made in China) | √ (made in China) | √ (made in China) | |
Cooling Pump | W | 750W Wesson | 750W Wesson | 750W Wesson |
Electrical Component | Schneider | Schneider | Schneider | |
Machine Tool Heat Exchanger | √ (made in China) | √ (made in China) | √ (made in China) | |
Pneumatic Triplet | Yadek | Yadek | Yadek | |
Oil Cooler | Diort | Diort | Diort | |
Chain Chip Removal Machine | Optional (made in China) | Optional (made in China) | Optional (made in China) |
