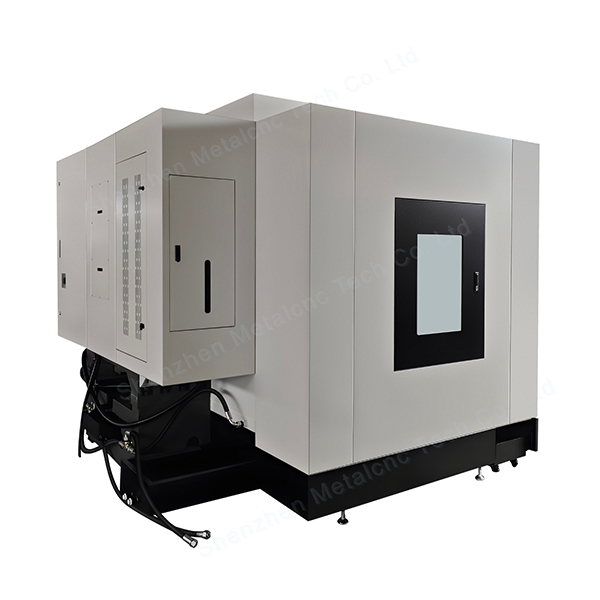

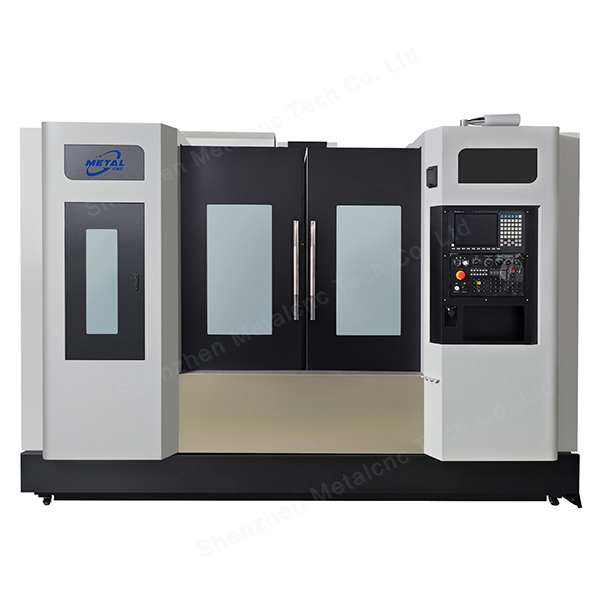

Product Overview
HT-300 cast iron frame vertical machining centers with BT40 spindle and 24-tool ATC, ideal for automotive, aerospace, and mold manufacturing. Equipped with Mitsubishi/FANUC CNC and premium components for precision and reliability.
Model Highlights
Model | Key Differentiators | Applications |
VMC1260 | 600mm Y-axis, 1300×600mm table (800kg), 673mm spindle center | Medium parts, prototypes |
VMC1265 | 650mm Y-axis (+50mm vs VMC1260), 697mm spindle center | Wide-format mold bases, sheet metal |
VMC1270 | 700mm Y-axis, 1300×700mm table (900kg), 45-55-45mm rails | Heavy-duty aerospace components, large molds |
VMC1275 | 750mm Y-axis (max in series), 797mm spindle center | Ultra-wide parts, shipbuilding, 3D contours |
Shared Advantages
• Precision: ±0.003mm positioning (JIS6338), Ra≤0.8μm surface finish.
• Performance: 8000-12000rpm spindle, 36m/min fast feed, 24-tool ATC (Okada/Aimach).
• Components: NACHI bearings, roller guides, Schneider electrics, Taiwanese lubrication systems.
Optional Upgrades
• Chain chip conveyor, 4th-axis rotary table, high-pressure cooling.
Key Benefits
• Scalable Y-axis: 600-750mm travel for diverse workpiece widths.
• Heavy Load Capacity: Up to 900kg for large parts.
• Global Compatibility: Mitsubishi/FANUC controls for easy integration.
Inquire for model-specific configurations!
Technical Parameters | Units | VMC1260 | VMC1265 | VMC1270 | VMC1275 |
Machine Type and Structure | Vertical machining center | Vertical machining center | Vertical machining center | Vertical machining center | |
Machine Castings | KBR | HT-300 | HT-300 | HT-300 | HT-300 |
X-axis Travel | mm | 1200 | 1200 | 1200 | 1200 |
Y-axis Travel | mm | 600 | 650 | 700 | 750 |
Z-axis Travel | mm | 600 | 600 | 600 | 600 |
Spindle Nose to Table | mm | 120-720 | 120-720 | 120-720 | 120-720 |
Spindle Center to Column Rail | mm | 673 | 697 | 745 | 797 |
Bench Type | Standard workbench | Standard workbench | Standard workbench | Standard workbench | |
Workbench Dimensions | mm | 1300×600 | 1300×600 | 1300×700 | 1300×700 |
Workbench Division | mm | 18×5×100 | 18×5×100 | 18×7×100 | 18×7×100 |
Maximum Workbench Load | kg | 800 | 800 | 900 | 900 |
Three-axis Track Design | Type | Roller | Roller | Roller | Roller |
Three-axis Track Width | mm | 45-45-45 | 45-45-45 | 45-55-45 | 45-55-45 |
Three-axis Track Slider | 6-4-6 | 6-4-6 | 6-4-6 | 6-4-6 | |
Three-axis Track Diameter | mm | 40-40-40 | 40-40-40 | 40-40-40 | 40-40-40 |
Three-axis Orbital Pitch | mm | P=12-12-12 | P=12-12-12 | P=12-12-12 | P=12-12-12 |
Three-axle Bearing | NACHI | NACHI | NACHI | NACHI | |
Spindle | Cells /Volis | Cells /Volis | Cells /Volis | Cells /Volis | |
Spindle Taper Bore | BT40 | BT40 | BT40 | BT40 | |
Spindle Diameter | mm | 150 | 150 | 150 | 150 |
Transmission Type | Belt | Belt | Belt | Belt | |
Spindle Speed | rpm | 8000-12000 | 8000-12000 | 8000-12000 | 8000-12000 |
G00 Fast Feed (X/Y/Z) | m/min | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 |
G00 Cutting Feed | m/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
Recommended servo motor specifications | Kilowatt | - | - | 3.0 x3.0x3.0 | 3.0 x3.0x3.0 |
Positioning Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 | ±0.012 |
Reproduction Accuracy (JIS6338) | mm | ±0.012 | ±0.012 | ±0.012 | ±0.012 |
ATC Capacity | pcs | Arm Type-24 tools | Arm Type-24 tools | Arm Type-24 tools | Arm Type-24 tools |
ATC Brand | Okada/Aimach | Okada/Aimach | Okada/Aimach | Okada/Aimach | |
Automatic Lubrication System | River Valley/Proton | HERG/Baoton | HERG/Baoton | HERG/Baoton | |
Knife Cylinder | Yadek/Haocheng | Airtac/Haocheng | Airtac/Haocheng | Airtac/Haocheng | |
Three-axis Shroud | Liuding | Liuding | Liuding | Liuding | |
Numerical Control System | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | |
Recommended X/Y Axis Servo Motor | model | HF-303S/β22 | HF-303S/β22 | HF-303S/β22 | HF-303S/β22 |
Recommended Z-axis Servo Motor | model | HF-303BS/β22 | HF-303BS/β22 | HF-303BS/β22 | HF-303BS/β22 |
Recommended Spindle Motor | model | SJ-V11/β12 | SJ-V11/β12 | SJ-V11/β12 | SJ-V11/β12 |
Electricity demand | Kilovolt-ampere | Kilovolt-ampere | Kilovolt-ampere | Kilovolt-ampere | |
Machine Net Weight | kg | 7200 | 7000 | 7300 | 7300 |
Body Dimensions (L×W×H) | mm | 3400×2480×2960 | 3300×2700×3000 | 3450×2600×2600 | 3450×2600×2600 |
Bottom Plate Chip | √ (made in China) | √ (made in China) | √ (made in China) | √ (made in China) | |
Manual Chip Removal Tank | √ (made in China) | √ (made in China) | √ (made in China) | √ (made in China) | |
Outer Protective Cover | √ (made in China) | √ (made in China) | √ (made in China) | √ (made in China) | |
Cooling Pump | W | 750W Wesson | 750W Wesson | 750W Wesson | 750W Wesson |
Electrical Component | Schneider | Schneider | Schneider | Schneider | |
Machine Tool Heat Exchanger | √ (made in China) | √ (made in China) | √ (made in China) | √ (made in China) | |
Pneumatic Triplet | Yadek | Yadek | Yadek | Yadek | |
Oil Cooler | Diort | Diort | Diort | Diort | |
Chain Chip Removal Machine | Optional (made in China) | Optional (made in China) | Optional (made in China) | Optional (made in China) |
