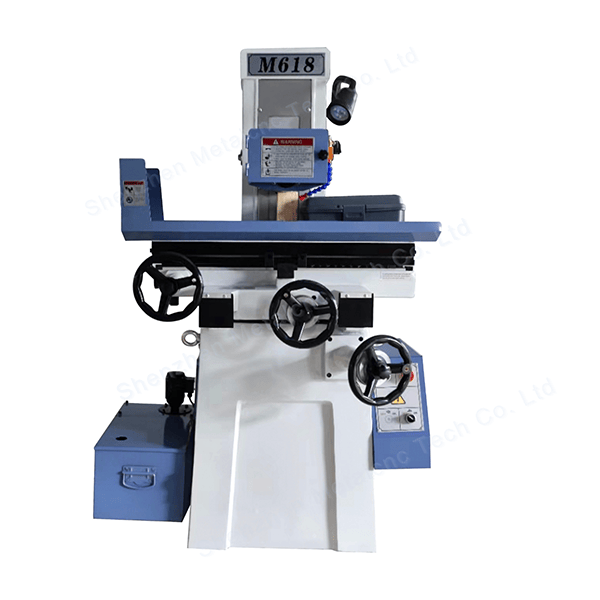

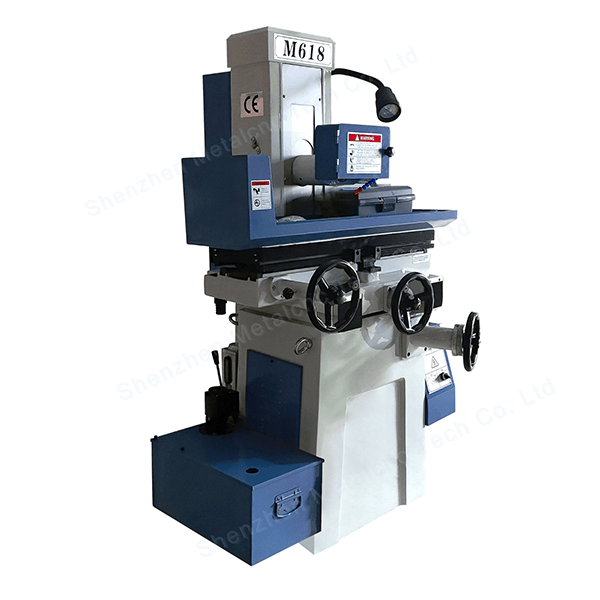

Technical Parameters : Unit M618
Table maximum cutting area (L × W×H) : 490×180×335mm
Working table movement :
Max. Grinding Length (Horizontal) : 490mm
Max. Grinding width (Vertical) : 190mm
Distance From Table Surface To Spindle Center : 335mm
Slide way : V-type rail with Steel-ball
M618 Technical Specifications | |||
Technical Parameters | Unit | M618 | |
Table maximum cutting area | mm | 490×180×335 | |
Working table movement | Max. Grinding Length (Horizontal) | mm | 490 |
Max. Grinding width (Vertical) | mm | 190 | |
Distance From Table Surface | mm | 335 | |
Slide way | - | V-type rail with Steel-ball | |
Maximum work load | Kg | 200 | |
Table size | mm | 450×150 | |
Number of T -Slot | mm×n | 14×1 | |
Front and rear wheel feed | mm | 0.02/Graduation, 2.5/revolution | |
On the hand wheel feed | mm | 0.01/Graduation, 1.25/revolution | |
Wheel Size (dia×width×bore) | mm | 180×13×31.75 | |
Spindle speed | 50HZ | rpm | 2800 |
Veriable frequency motor(matching) | - | ||
Spindle motor | Kw | 1.1 | |
Cooling pump | Kw | 0.04 | |
Packing Size (L×W×H) | mm | 1240×1080×1800 | |
Cross、Net | T | 0.75、0.65 | |
