Max table surfacing size (L×W×H): 700×300mm
Max stroke (L × W): 750×320mm
Table maximum cutting area (L × W): 700×300mm
Number of T -Slot : 1×14mm
Distance From Table Surface To Spindle Center: 500mm
Wheel （WA46K5V） Size(dia×width×bore): Ø350×32×ø127mm

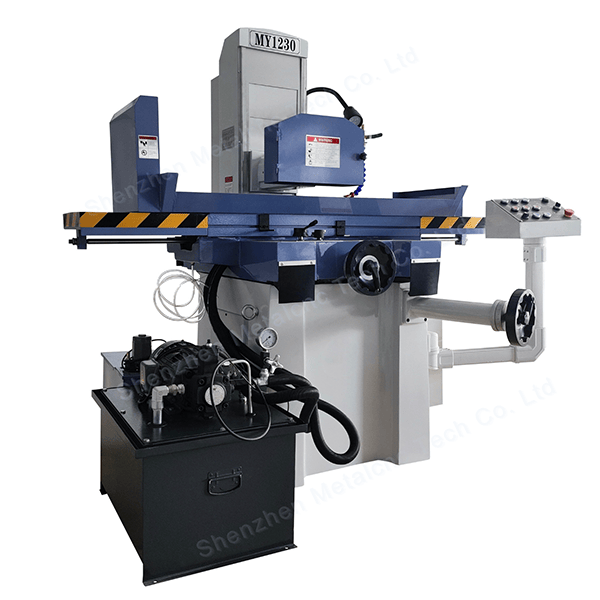

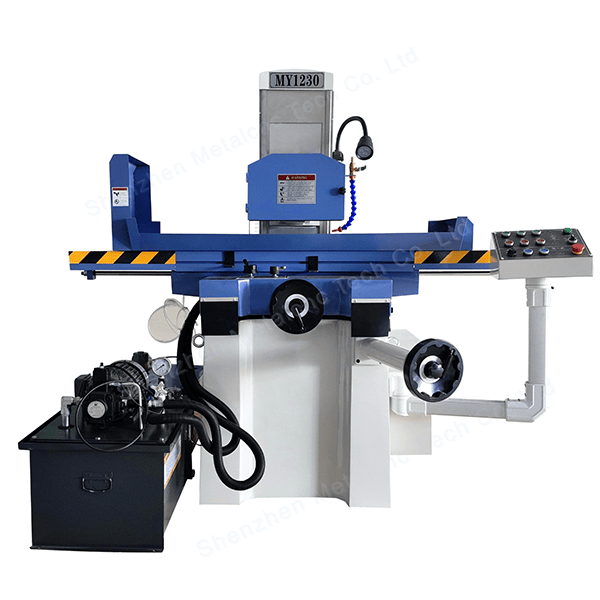

Spindle speeds: 1440 r/min| Model | MY1230 | |||
| Bench | Max table surfacing size (L×W×H) | mm | 700×300 | |
| Max stroke (L × W) | mm | 750×320 | ||
| Table maximum cutting area (L × W) | mm | 700×300 | ||
| Number of T -Slot | mm | 1×14 | ||
| The grinding head | Distance From Table Surface To Spindle Center | mm | 500 | |
| Wheel （WA46K5V） Size(dia×width×bore) | mm | Ø350×32×ø127 | ||
| Spindle speeds 砂轮转速（50HZ） | r/min | 1440 | ||
| The amount of feed | Table longitudinal running speed (stepless) | m/min | 3--20 | |
| Table horizontal (before and after) the amount of feed | Continuous (variable speed) | mm/min | 150 | |
| Intermittent (stepless) | mm/次 | 0-5 | ||
| The handwheel rotates | mm | 5 | ||
| Hand wheel each grid | mm | 0.02 | ||
| Vertical (up and down) feed wheel feed | The handwheel rotates | mm | 2 | |
| Hand wheel each grid | mm | 0.01 | ||
| Motor power | Spindle motor | kw | 4 | |
| Cooling motor | w | 40 | ||
| Hydraulic system | Hydraulic motor | kw | 1.5 | |
| Working Pressure | Mpa | 2.5 | ||
| Oil tark capacity | L | 80 | ||
| Max. Capacity | L/min | 18 | ||
| Working precision | The machined surface of the base of parallelism | mm | 300/0.005 | |
| Surface Roughness | μm | Ra0.32 | ||
| Weight of machine | Net | T | 1.4 | |
| Cross | T | 1.5 | ||
| Machine Size (L×W×H) | mm | 1900×1520×2020 | ||
