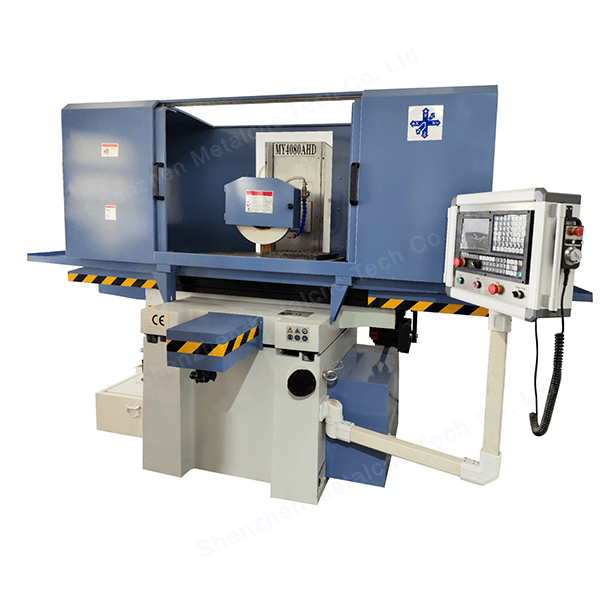

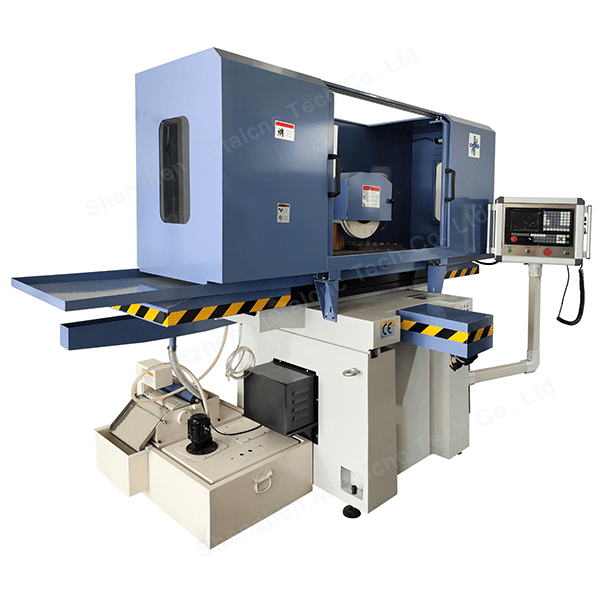

| Hydraulic Surface Grinder Technical Specifications SG4080AHD | ||
| Model Description | Unit | SG4080AHD |
| Max. workpiece to be Ground(L×W×H) | mm | 820×420 |
| Max.Grinding Length | mm | 820 |
| Max.Grinding width | mm | 420 |
| Distance from table surface to spindle center | mm | 500 |
| Slide way | One flat rail one V rail | |
| Maximum work load | kg | 200 |
| Table size(L×W) | mm | 800×400 |
| Number of T-slot | mm×n | 14×1 |
| Speed of working table | m/min | 18 |
| Cross feed on handwheel | mm | 0.02/Graduation 5/revolution |
| Vertical feed on handwheel | mm | 0.001/0.01/0.01Graduation |
| 0.1/1/10/revolution | ||
| Wheel size(dia×width×bore) | mm | Φ350×40×Φ127 |
| Spindle speeds | rpm | 1440 |
| The total power of electric motor | kw | 6.5 |
| Spindle motor | kw | 4 |
| Coolant pump | kw | 0.04 |
| Cross feed motor of table | kw | 0.06 |
| Vertical (up and down) feed motor of table | kw | 0.75 |
| The machined surface of the base of parallelism | mm | 300:0.005 |
| Surface roughness | μm | Ra0.63 |
| Minimum of numerical | L | 80 |
| Packing size(L×W×H) | mm | 2300*1900*2170 |
| Gross、Net | T | 2.75、2.65 |
Random Components
Flange
Balance Table
Foot Pad Disc
Crosshead Screwdriver
Grinding Wheel Seat
Grinding Wheel
Balance Rod
Foot Screw
Flathead Screwdriver
Water Tank
Magnetic Chuck
Balance Table Screw
Diamond Tool
Open-end Wrench
1.5 - 10 Hex Key Wrench
