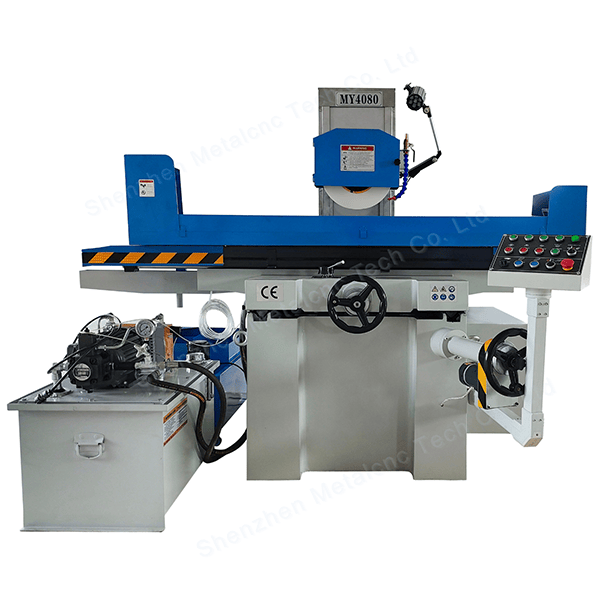

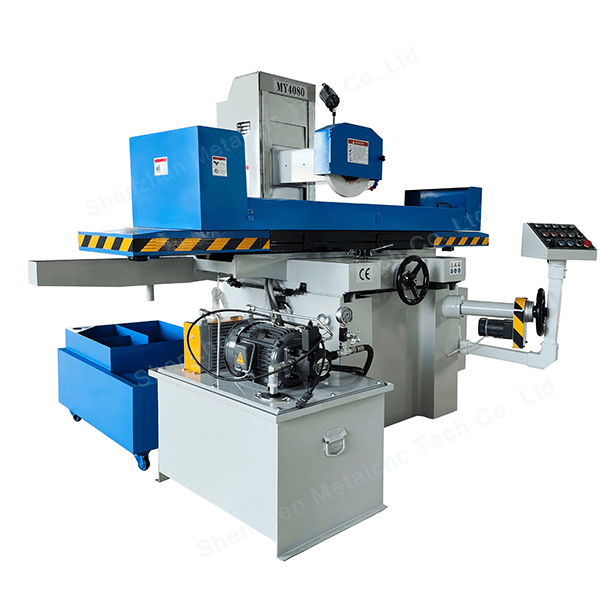

| Model Description | Unit | MY4080 | |
| Table size(W×L) | mm | 400×800 | |
| Max.longitudinal travel | mm | 830 | |
| Cross tranal | mm | 420 | |
| Max.distance from spindle center to table | mm | 500 | |
| Magnetic chuck size | mm | 400×800 | |
| Speed of table longitudinal movement | m/min | 7 ～ 16 | |
| Table transverse | Auto feed | mm/min | 0.1 ～ 8 |
| movement | Rapid speed | m/min | 990 |
| Feed of handwheel | mm/div. | 0.02 | |
| Wheelhead | Auto feed | mm/stroke | —— |
| vertical | |||
| movement | Rapid speed | mm/min | 610 |
| Feed of handwheel | mm/div. | 0.01 | |
| Grinding wheel | Speed | rpm | 50Hz 1450 |
| 60Hz 1750 | |||
| (OD×W×ID)Size | mm | 350×40×127 | |
| Working precision : | mm | 00:00.0 | |
| The machined surface of the base of parallelism | |||
| Spindle Motor | KW | 4 | |
| Hydranlic Motor | KW | 2.2 | |
| Cooling pump motor | KW | 0.09 | |
| Elevating Motor | KW | 0.09 | |
| Cross feed motor | KW | 0.06 | |
| Max.loading capacity of table(include magnetic chuck) | kg | 200 | |
| Total rated power | KW | 7 | |
| Height of machine | mm | 1890 | |
| Gross weight | kg | 2.75 | |
| mm | 2300*1900*2170 | ||
| Package dimensions(L×W×H) | |||
Random Accessories
Flange
Balance Table
Lock Washer
Crosshead Screwdriver
Grinding Wheel Dresser
Grinding Wheel
Balance Rod
Socket Screw
Flathead Screwdriver
Water Tank
Magnetic Chuck
Balance Table Screw
Grinding Wheel Dismounting Wrench
Open-end Wrench
1.5 - 10 Hex Key Wrench
Auto feed: 0.1 ～ 8mm/min
