Max table surfacing size (L×W×H): 500×250mm
Max stroke (L × W): 540×260mm
Table maximum cutting area (L × W): 500×250mm
Number of T -Slot: 1×14mm
Distance From Table Surface to Spindle Center: 490mm
Wheel Size（WA46K5V）(dia×width×bore): ø200×18×ø31.75mm
Spindle speeds （50HZ）: 2850r/min

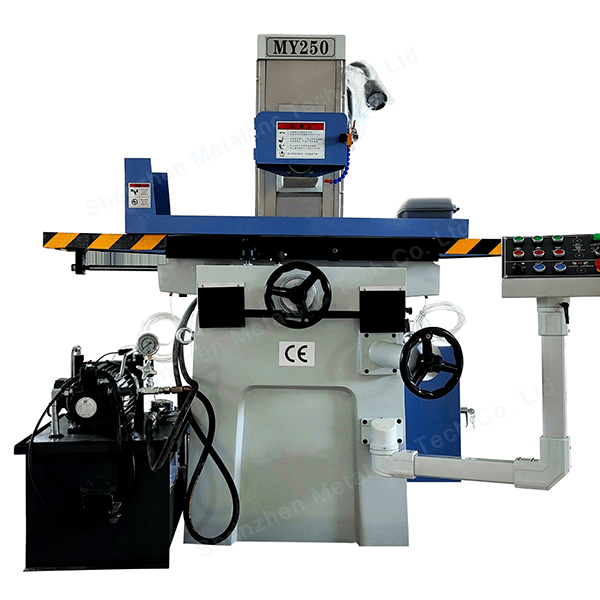

MY250 Hydraulic Surface Grinder Technical Specifications | ||||
Technical Parameters | Unit | MY250 | ||
Bench | Max table surfacing size (L×W×H) | mm | 500×250 | |
Max stroke (L × W) | mm | 540×260 | ||
Table maximum cutting area (L × W) | mm | 500×250 | ||
Number of T -Slot | mm | 1×14 | ||
Grinding head | Distance From Table Surface to Spindle Center | mm | 490 | |
Wheel Size（WA46K5V）(dia×width×bore) | mm | ø200×18×ø31.75 | ||
Spindle speeds （50HZ） | r/min | 2850 | ||
Amount of feed | Table longitudinal running speed (stepless) | m/min | 3--20 | |
Table horizontal (before and after) | Continuous (variable speed) | mm/min | 150 | |
Intermittent (stepless) | mm/time | 0-5 | ||
The handwheel rotates | mm | 5 | ||
Hand wheel each grid | mm | 0.02 | ||
Vertical (up and down) | The handwheel rotates | mm | 2 | |
Hand wheel each grid | mm | 0.01 | ||
Motor power | Spindle motor | kw | 1.5 | |
Cooling motor | w | 40 | ||
Hydraulic system | Hydraulic motor | kw | 1.5 | |
Working Pressure | Mpa | 2.5 | ||
Oil tark capacity | L | 60 | ||
Max. Capacity | L/min | 18 | ||
Working precision | The machined surface of the base of parallelism | mm | 300/0.005 | |
Surface Roughness | μm | Ra0.32 | ||
Weight of machine | Net weight | T | 1.05 | |
Gross weight | T | 1.15 | ||
Machine Size (L×W×H) | mm | 1750×1350×1960 | ||
