Feature:
1. One-key input automatic calculation/automatic matching /automatic adjustment
2. High jumpfunction is set during deep processing to take out the carbon residue at one time to prevent carbon deposition
3. The large surface processing is turned on and the slow jump does not hurt the electrode,preventing the coordinate dislocation
4. When the machining reaches the set depth, continue to polish the surface. Under the condition that the depth remains unchanged,the machined surface will achieve the besteffect

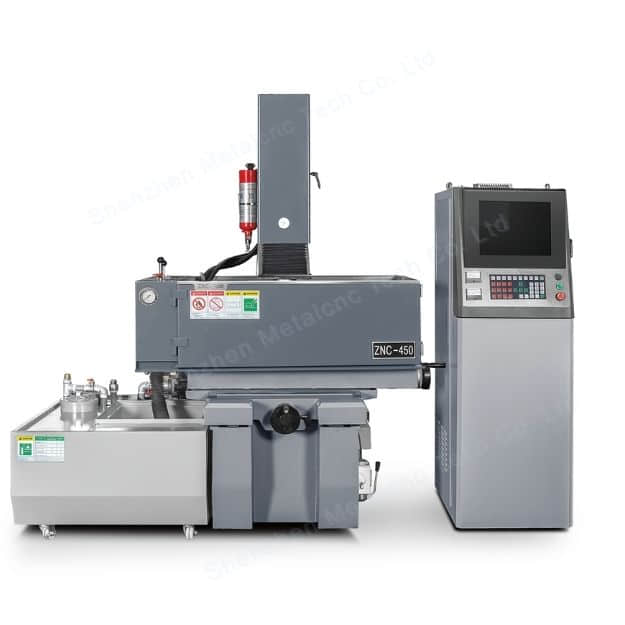

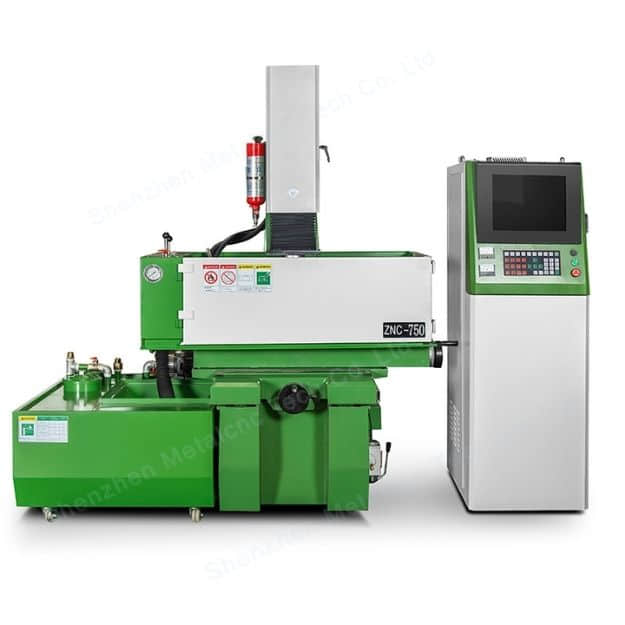

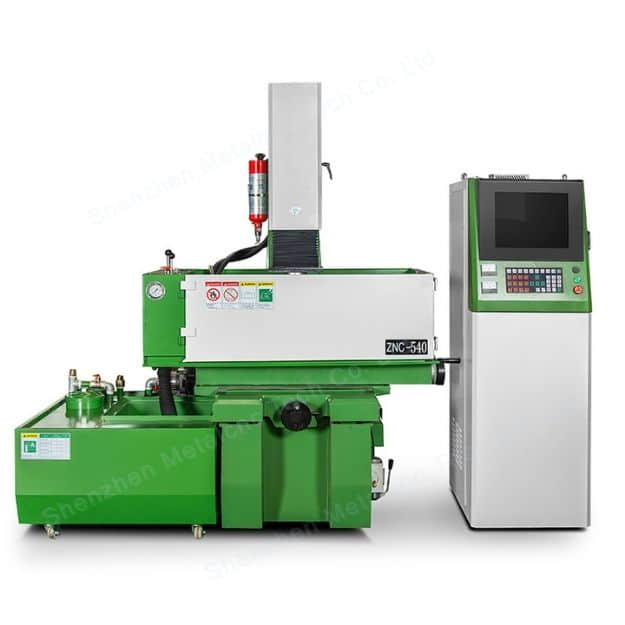

Specification | ZNC-430 | ZNC-450 | ZNC-540 | ZNC-650 | ZNC-750 |
Working oil tank size | 1100×600×450 | 1130×710×450 | 1300×720×475 | 1650×1100×630 | 1650×1100×630 |
working table size | 650×350 | 700×400 | 800×400 | 1050×600 | 1050×600 |
Left and right travel of worktable | 400 | 450 | 500 | 650 | 700 |
Backand forth stroke of worktable | 300 | 350 | 400 | 550 | 550 |
Spindle(Zaxis)stroke | 200 | 200 | 200 | 250 | 250 |
nose stroke | 280 | 280 | 380 | 400 | 400 |
Electrode tipto work surface | 450 | 480 | 580 | 850 | 850 |
Electrode maximum load | 120 | 120 | 150 | 200 | 200 |
Maximum load | 1000 | 1200 | 1500 | 2000 | 2000 |
Machine weight(KGS) | 1360 | 1550 | 1740 | 2950 | 2950 |
Appearance size(L×W×H) | 1430×1180×1800 | 1470×150×1980 | 1640×1460×2140 | 2000×1710×2360 | 2000×1710×2360 |
Filter box volume | 400 | 400 | 460 | 980 | 980 |
Net weight of filter box | 150 | 150 | 180 | 300 | 300 |
One-key auto-calculation/matching/adjustment simplifies operation for efficiency.
