High precision (0.015mm) and speed (≥150mm²/min) for accurate, efficient cutting across tasks.
Versatile models (DK7720-DK77100) handle 300-1000mm thickness, suiting diverse needs.

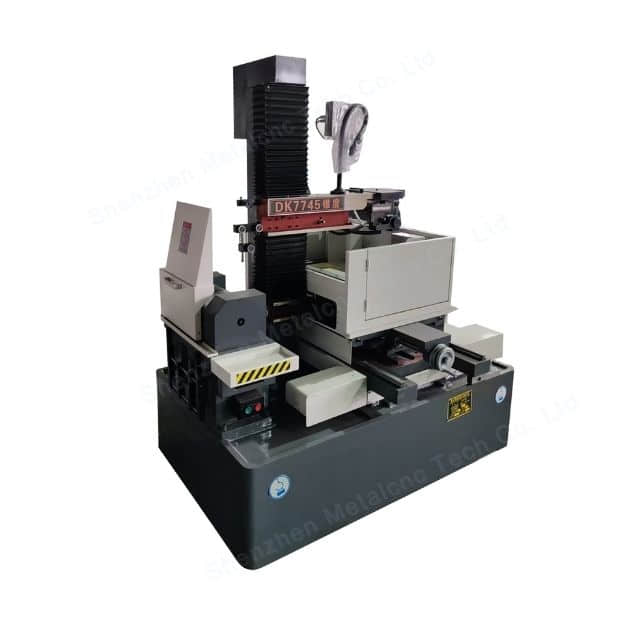

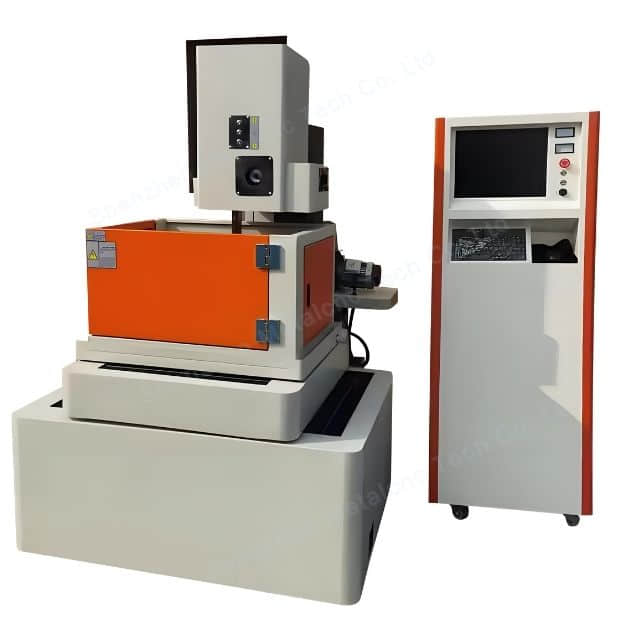

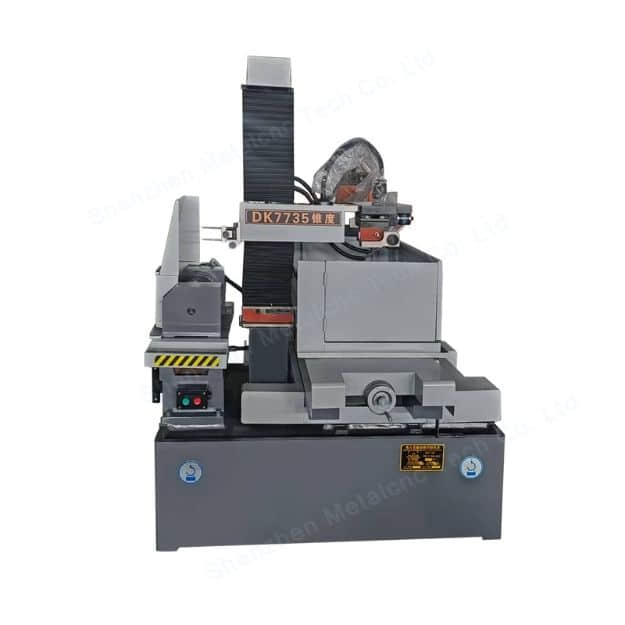

Stable 3-phase 380V operation; 11.5m/s wire speed ensures consistent performance.Elevate your precision cutting with our Fast Wire Cutting Machine Series (DK7720 - DK77100). Built for efficiency, these machines deliver accurate, high - speed cuts across diverse industrial needs.
Available in models from DK7720 to DK77100, they suit small - scale to large - scale tasks. With options like taper cutting, large - thickness handling, and enclosed eco - friendly designs, find the perfect fit for your workshop.
Powered by 3 - phase 380V/50Hz, they ensure stable, compatible operation. Trust this series for reliable, precise wire - cutting performance, boosting your production quality and efficiency.
Fast wire cutting machineDK7720-DK77100 | |||||
Technical parameter | |||||
Machine tool model | DK7720 | DK7735 | DK7745 | DK7740F | DK7750 |
Table size (mm) | 700×440 | 710×470 | 810×570 | 1000×540 | 1000×650 |
Workable stroke (mm) | 200×250 | 350×450 | 450×550 | 400×680 | 500×630 |
Max. processing thickness (mm) | 300 | 400 | 400 | 400/600 | 600 |
Machining taper (mm) | 6°、15°、30°/80 | ||||
Machining speed (mm²/min) | ≧150 | ||||
Formatting accuracy (mm) | ≦2.5 | ||||
Diameter of electrode wire (mm) | 0.10-0.20 | ||||
Fixed speed of electrode wire (m/s) | 11.5 | ||||
Processing accuracy (mm) | 0.015 | ||||
Power supply | 3-phase / 380 V / 50 Hz | ||||
Max. workpiece weight (kg) | 150 | 300 | 450 | 500 | 700 |
Main engine weight (kg) | 700 | 1300 | 1800 | 2000 | 2400 |
Dimensions (mm) | 1100×800×1400 | 1240×1170×1400 | 1600×1240×1400 | 1700×1600×1600 | 1720×1680×1700 |
Box size (mm) | 1200×1000×1500 | 1700×1370×1700 | 2000×1800×1900 | 2000×1800×1900 | 2000×1900×2100 |
Machine tool model | DK7750F | DK7763 | DK7763F | DK7780 | DK77100 |
Table size (mm) | 1140×650 | 1140×750 | 1350×750 | 1350×985 | 1700×1170 |
Workable stroke (mm) | 500×800 | 630×800 | 630×1000 | 800×1000 | 1000×1200 |
Max. processing thickness (mm) | 500/600 | 700 | 600/800 | 800 | 800/1000 |
Machining taper (mm) | 6°、15°、30°/80 | ||||
Machining speed (mm²/min) | ≥150 | ||||
Formatting accuracy (mm) | ≤2.5 | ||||
Diameter of electrode wire (mm) | 0.10-0.20 | ||||
Fixed speed of electrode wire (m/s) | 11.5 | ||||
Processing accuracy (mm) | 0.015 | ||||
Power supply | 3-phase / 380 V / 50 Hz | ||||
Max. workpiece weight (kg) | 1000 | 1000 | 1000 | 2000 | 2600 |
Main engine weight (kg) | 2600 | 3200 | 3500 | 4000 | 5600 |
Dimensions (mm) | 2000×1900×1700 | 2100×1940×1780 | 2300×2200×1800 | 2600×2400×1800 | 3000×2800×2500 |
Box size (mm) | 2000×1900×2100 | 2500×2200×2200 | 2500×2200×2200 | 3000×2800×2200 | 3400×3100×2900 |
