High precision (≤0.01mm) with 0-12° taper capability, ideal for complex parts in mold-making and electronics.
User-friendly auto-threading, adjustable nozzles, and stable T-shaped beds boost productivity.

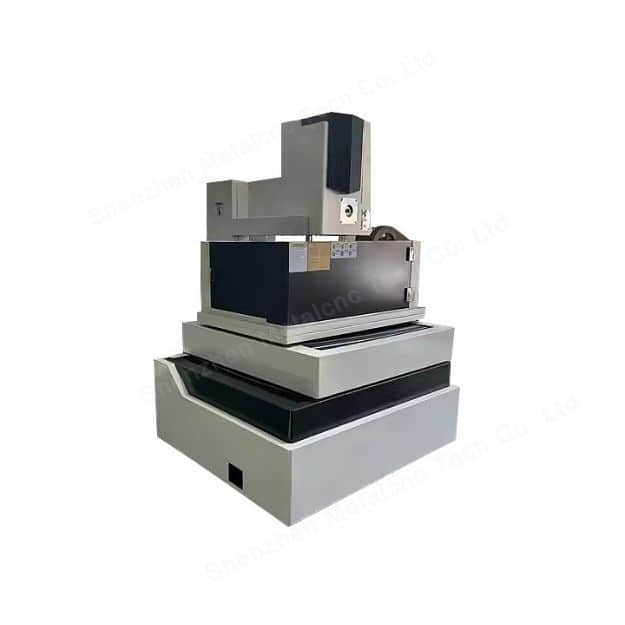

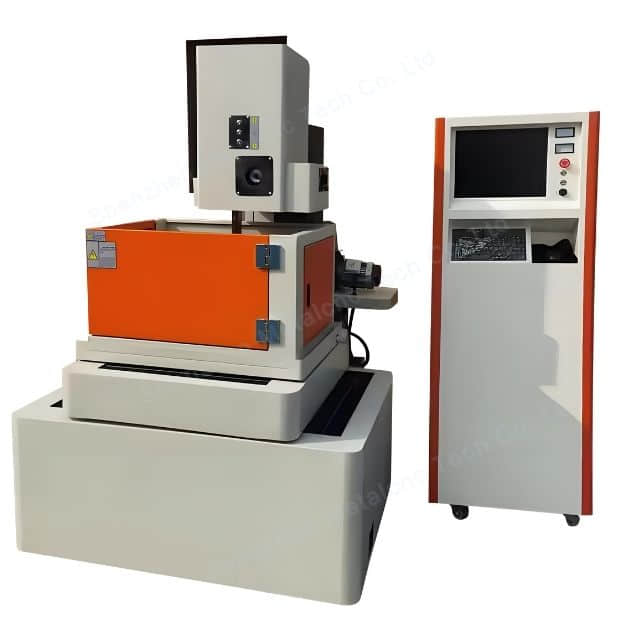

Variable wire speed (1-11.4m/s), Ra≤1.0μm surface finish, ensuring consistent quality across models.Precision meets efficiency with our Medium Wire Cutting Machine series (SL400/SL500/SL600/SL800). Built for industrial - grade accuracy, these machines handle machining tapers of 0 - 12°, delivering clean, precise cuts for complex parts.
Equipped with user - friendly auto - threading, stable T - shaped beds, and adjustable nozzles, they boost productivity while ensuring consistent quality. From intricate components to large - scale projects, trust our wire cutters to elevate your manufacturing. Ideal for mold - making, electronics, and more.
Medium wire cutting machineSL400/SL500/SL600/SL800 | ||||
Technical parameter | Machining taperis:0°-12° | |||
Project | SL400 | SL500 | SL600 | SL800 |
Workbench | ||||
Table size | 620×480mm | 850×650 mm | 1020×640 mm | 1180×750 mm |
X and Y axis stroke of worktable | 320×400 mm | 400×500 mm | 500×630 mm | 630×800 mm |
Max. linear cutting thickness | 300mm | 300mm | 350 mm | 350 mm |
Max. bearing capacity | 300 kg | 500 kg | 800 kg | 1200 kg |
10. Y Min. instruction unit | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm |
Taper and Z-axis stroke | ||||
Vertical stroke of Z-axis ram | 250 mm | 250 mm | 300 mm | 300 mm |
Max. cutting taper | ±6°/80 mm | ±6°/80 mm | ±6°/80 mm | ±6°/80 mm |
U.V. min. command unit | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm |
Drive control | ||||
control mode | XY axis AC servo, UV axis three-phase six-beat hybrid motor optional / XYUV full step | |||
Z transmission | AC deceleration electric lifting | |||
Simultaneously controlled axes | 10. Y, U, V four axes | |||
Filament storage cylinder | ||||
Max. stroke of the wire storage drum | 200 mm | 200 mm | 200 mm | 200 mm |
Electrode wire diameter range | φ0.15~φ0.20 mm (Standard configuration φ0.18 mm) | |||
Wire speed | 1~11.4 m/s (Variable frequency adjustable) | |||
Processing index | ||||
Machining accuracy | ≤0.01 mm | |||
Max. cutting efficiency | ≥120 mm²/min | |||
Optimum surface roughness | Ra≤1.0 μm (Cut one and repair two) | |||
Working fluid tank | ||||
Tank volume | 90 L | 90 L | 90 L | 90 L |
Working fluid filtering mode | Paper core fine filtration | |||
Other | ||||
Power supply | 3-phase / 380 V / 50 Hz | |||
Control system | X8, Auto Cut, Win Cut, HL, HF | |||
Power | 2.3/6 kW | 2.3/6 kW | 2.3/6 kW | 2.3/6 kW |
Max. processing current | 6 A | 6 A | 6 A | 6 A |
Weight | about 1500 kg | about 1800 kg | about 2200 kg | about 2800 kg |
Machine tool size | 1700×1300×2160 mm | 1960×1620×2160 mm | 2120×1760×2250 mm | 2410×2060×2250 mm |
Packing box size | 2010×1400×2300 mm | 2220×1800×2300 mm | 2350×2000×2400 mm | 2800×2100×2400 mm |
Machine tool noise | ≤70dB | |||
