All critical components imported from Taiwan to guarantee premium manufacturing standards.
Spindle engineered with high-performance alloys for superior shock absorption and wear resistance.
Worktable designed for ultra-precision machining, featuring minimal error tolerance, heavy-duty load-bearing capacity, and structural rigidity.I. Core Technical Commonalities

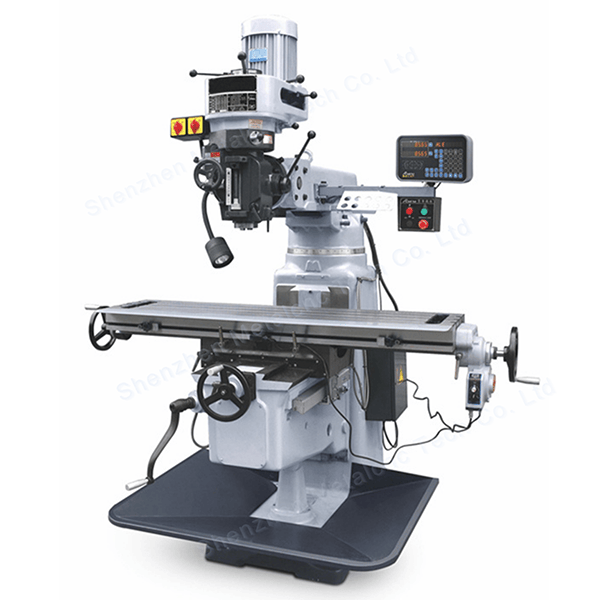

1, Product Category: Excellence Milling Machine (FTM-X Series)
2, Quality Framework:
A, All critical components imported from Taiwan to guarantee premium manufacturing standards.
B, Spindle engineered with high-performance alloys for superior shock absorption and wear resistance.
C, Worktable designed for ultra-precision machining, featuring minimal error tolerance, heavy-duty load-bearing capacity, and structural rigidity.
3, Shared Specifications:
A, Standard accessories include X-axis power feed, 6-inch vise, 58-piece clamping kit, electrical control box, LED working light, tool storage cabinet, and collet set (R8/NT30 for X4, NT40 for X5/X6).
B, Universal head tilt mechanism: 45° articulation in both longitudinal and lateral axes.
C, Guide track configuration: ▲-type for X, Y, Z axes (consistent mechanical design across models)..
II. Model Differentiation Matrix
Product Name | Excellence Milling Machine | Excellence Milling Machine | Excellence Milling Machine | ||
Model | X4 | X5 | X6 | ||
Worktable Size (L×W) | 1470×320mm | 1470×320mm | 1470×320mm | ||
Max. Worktable Load | 300kgs | 300kgs | 300kgs | ||
Axis Travel (X×Y×Z) | Prime 700 (Max 920)×410×400mm | Prime 700 (Max 920)×410×400mm | Prime 700 (Max 920)×410×400mm | ||
Spindle Nose to Worktable | 50-455mm | 108-515mm | 140-505mm | ||
Overarm Travel | 430mm | 430mm | 430mm | ||
Quill Feed | 127mm | 127mm | 127mm | ||
Quill Feed Speed | 0.04/0.08/0.15mm/rev | 0.04/0.08/0.15mm/rev | 0.04/0.08/0.15mm/rev | ||
Spindle Speed (RPM) | 16steps65-4660 | 16steps65-4660 | 16steps65-4660 | ||
Spindle Taper | R8 (NT30) | NT40 | NT40 | ||
Spindle Motor Power | 3HP | 5HP | 5HP | ||
Head tilt | Back-forth/Right-left 45° | ||||
Guiding tracks: X.Y.Z | ▲.▲▲.▲ | ▲.▲▲.▲ | ▲.▲▲.◼ | ||
Machine Dimensions (L×W×H) | 2000×1750×2200mm | 2000×1750×2300mm | 2000×1850×2300mm | ||
Machine Weight | 1100kg | 1200kg | 1700kg | ||
Standard Accessories | *Axis-X&Y(D、R、O) | *Axis-X&Y(D、R、O) | *Axis-X&Y(D、R、O) | ||
Optional Accessories | As per customer’s request | ||||
III. Technical Differentiation Explanations
1, Worktable & Axis Dynamics:
X4/X5/X6: Uniform 1470mm worktable length ensures consistent workpiece mounting, while X6’s 430mm overarm travel enables extended tool reach for complex fixtures.
Travel Variance: All models feature identical X/Y/Z travel envelopes, with X6’s overarm stroke optimized for long-reach milling operations.
2, Spindle System Upgrades:
X4: R8 (NT30) taper with 3HP motor suits general-purpose precision milling of non-ferrous metals.
X5/X6: NT40 taper coupled with 5HP motor delivers 66% higher torque, ideal for hardened steel machining and heavy-duty cutting applications.
Speed Gradient: X5/X6’s 80-5440rpm range (vs. X4’s 85-5440rpm) enhances low-speed torque for aggressive material removal.
3, Machine Structure & Load Capacity:
X4: Compact 2200mm height and 1300kg weight suitable for benchtop or small-bay installations.
X5: 2300mm height and 1500kg mass reflects NT40 spindle reinforcement for sustained heavy loading.
X6: 1850mm width and 1700kg weight incorporate reinforced Y-axis guides to support extended overarm travel and dynamic stability.
4, Accessory Integration:
X6-Exclusive: Rapid traverse motor standardizes high-speed positioning, reducing non-cutting time by 30% compared to manual feed operations.
DRO Configuration: All models feature dual-axis digital readouts, with Z-axis scale available as a precision enhancement for 3D contouring.
