High-grade cast iron with monolithic casting, 30% stronger—ideal for precision milling of small mechanical parts.
0.005mm parallelism ensures accuracy, perfect for aerospace component machining.
Compact 6" size with 0-153mm clamping, suited for electronics part production lines.

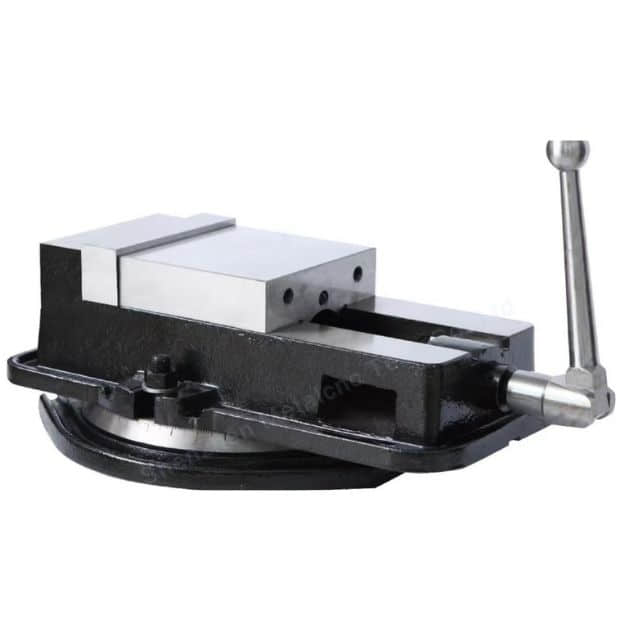

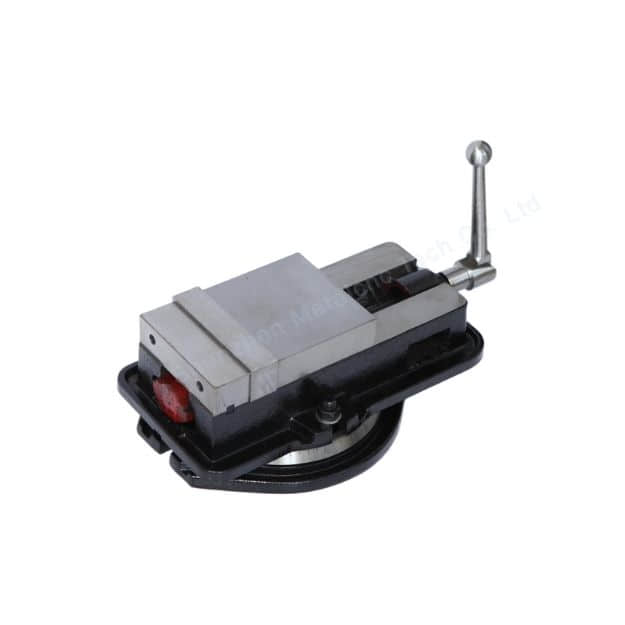

Precision milling machine vise , high-grade cast iron is exclusively selected as the raw material . Adopting monolithic flow casting technology, the product achieves:
30% higher structural strength
30% enhanced rigidity
30% extended service life

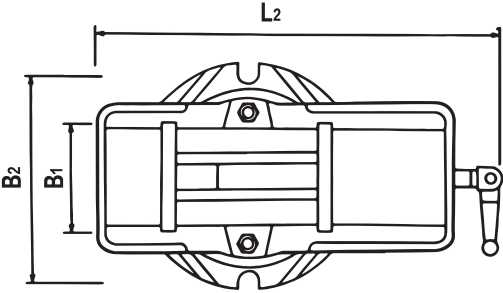

Model number | GPQ-001 |
Vise Size | 6" |
Efficient Clamping(L1) | 0-153mm |
Length (L2) | 450mm |
Height (H2) | 162mm |
Width (B2) | 290mm |
Clamp Jaw Height (H1 ) | 46mm |
Clamp Jaw Width (B1 ) | 158mm |
Parallelism | 0.005mm |
Perpendicularity | 0.01mm |
Weight | 36kg |
Package | Carton box |
Package Size | 470mm x 310mm x 210mm |
