Oil-free booster system delivers high clamping force, ideal for heavy-duty machining like automotive part production.
Closed-frame design blocks chips, ensuring precision in aerospace component manufacturing.

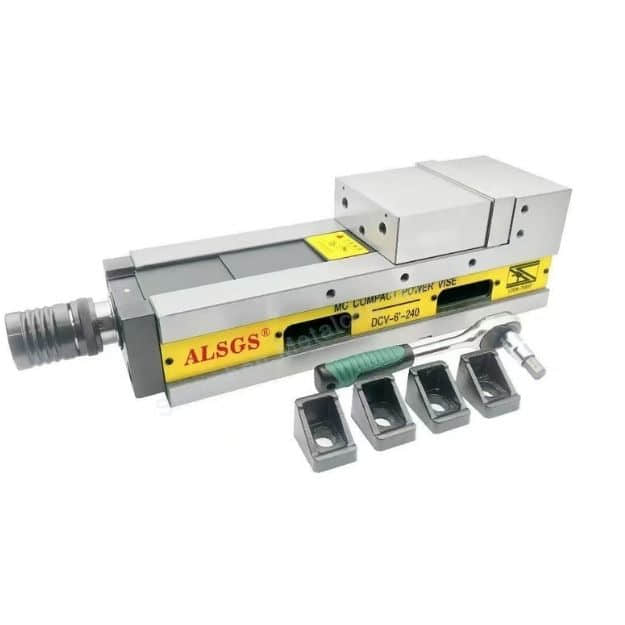

FCD60 cast iron body with HRC 56-58 rails, perfect for mold-making with long-term accuracy.Precision Machine Power Vise , featuring an oil-free force-multiplying mechanical booster system, this vise effortlessly delivers high clamping force while maintaining constant pressure,enabling it to withstand heavy-duty machining.
Closed-frame design effectively prevents chips from penetrating internal mechanisms during operation, eliminating precision deviations and component damage.
Key Material Specifications:
Body Material: Nodular cast iron FCD60
✓ High tensile strength
✓ Superior stability
✓ Minimal deformation
· Guide Rail Surface: Heat-treated to HRC 56-58
✓ Extended wear resistance
✓ Precision retention over lifetime

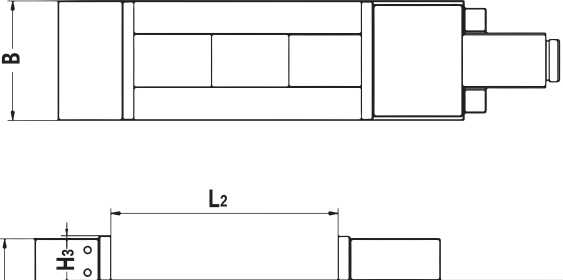

Model number | PMV-001 | PMV-002 |
Vise Size | 6" | 6" |
Efficient Clamping(L1) | 666mm | 616mm |
Length (L2) | 0-302mm | 0-252mm |
Height (H2) | 163mm | 163mm |
Width (B2) | 105mm | 105mm |
Clamp Jaw Height (H1 ) | 58mm | 58mm |
Clamp Jaw Width (B1 ) | 160mm | 160mm |
Parallelism | 0.005mm | 0.005mm |
Perpendicularity | 0.005mm | 0.005mm |
Weight | 56kg | 52kg |
Package | Carton box | |
Package Size | 730mm x 210mm x 200mm | |
