Compatible with various materials, 35 - 50mm drilling diameter for diverse processing
Flexible working range, adjustable spindle distances to suit different workpieces
34 - 1280rpm speed, 2.2 - 4kw motors for efficient drilling

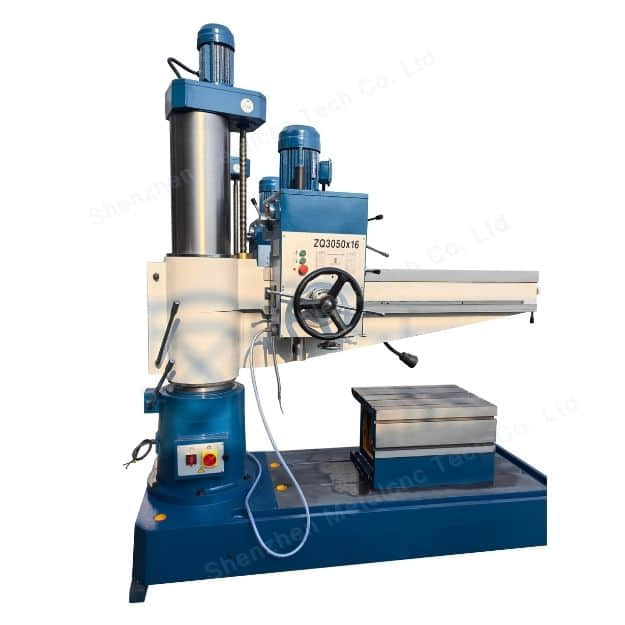

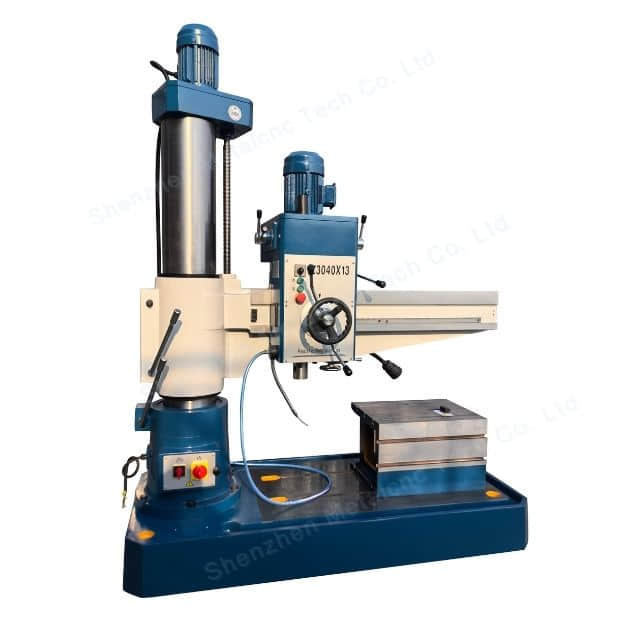

Here are our Z3040/Z3045/Z3050 series of radial drilling machines
This series is suitable for a variety of materials, with a maximum drilling diameter ranging from 35 to 50mm. It offers flexible working ranges, with the distance from the spindle to the worktable ranging from 140 to 1210mm and the distance from the spindle to the column ranging from 300 to 1600mm.
The spindle has a wide speed range, selectable from 34rpm to 1280rpm. The motors are powerful, with the main motor power ranging from 2.2 to 4kw. Ideal for machinery manufacturing, maintenance, and other fields, these machines are highly efficient and reliable.
| RADIAL DRILLING MACHINE Z3040/Z3045/Z3050 | ||||||
| Specification | UNIT | Z3040x13A | Z3040x13 | Z3050x16B | Z3045x14 | Z3050x16 |
| Max drilling diameter | mm | Cast40 Steel35 | Cast 40 Steel 35 | Cast 50 Steel 42 | Cast 45 Steel 40 | 50 |
| Distance form spindle to worktable | mm | 430-1210 | 140-1100 | 320-1020 | 260-1150 | 260-1150 |
| Distance from spindle to collumn | mm | 300-1100 | 360-1000 360-1300 | 350-1600 | 360-1400 | 350-1600/1300 |
| Spindle travel | mm | 220 | 220 | 300 | 280 | 220 |
| Spindle taper | 4 | 4 | 5 | 4 | 5 | |
| Spindle speed range | rpm | 34/75-1220 | 34/75-1220 | 78-1100/34-1280 | 34、78、145、75、130、500、260、430、920、380、760、1280 | 78、135、240、350、590、1100 |
| Spindle speed number | 6-12 | 6-12 | 6-12 | 12 | 6 | |
| Spindle feed range | rpm | 0.10、0.16、0.25 | 0.10-0.25 | 0.10-0.56 | 0.10、0.16、0.25 | 0.04-3.2 |
| Spindle feed number | 3 | 3 | 6 | 3 | 6 | |
| Arm swivel angle | o | 360 | 360 | 360 | 360 | 360 |
| Main motor power | kw | 2.2 | 2.2 | 4 | 3 | 4 |
| Elevating motor power | kw | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 |
| Machine weight | kg | 1400 | 1200/1300 | 2200 | 1700 | 2300/2400 |
| Machine size | mm | 1830x780x2350 | 1800x705×2300 | 2250x950x2500 | 1850x840x2300 | 2300x1060x2800 |
