Precision: ±0.003mm positioning accuracy, Ra≤0.8μm surface finish
Performance: 6000rpm BT50 spindle, 24-tool Okada/AIMACH ATC (≤1.8s tool change)
Reliability: NACHI bearings, Schneider electrics, Taiwan HIWIN/PMI guides/screwsProduct Overview

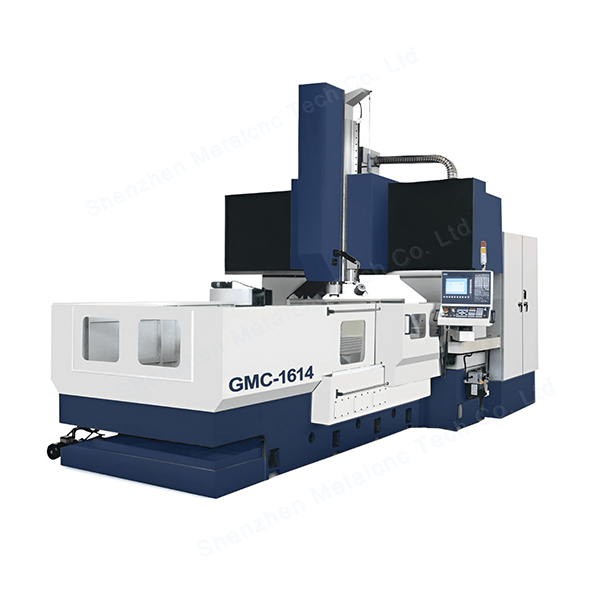

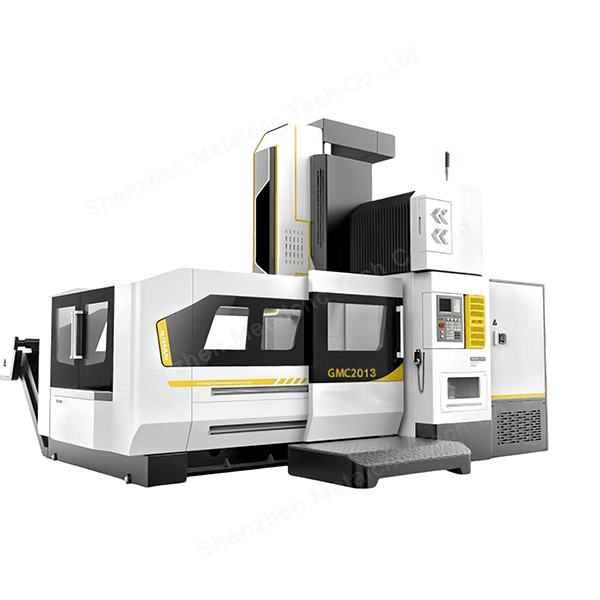

The GMC series gantry machining centers feature HT300 resin sand castings and BT50 spindles, designed for heavy-duty machining of large components in aerospace, energy, and mold industries. With FANUC/Mitsubishi controls and Taiwanese linear guides, these models deliver stable performance and micron-level accuracy for complex parts.
Model Highlights
Model | Key Features | Applications |
GMC1614 | - 1200×1600mm table, 1600×1500×1000mm travel | Medium-large molds, general machinery |
GMC2014 | - 1200×2000mm table, 2200×1500×1000mm travel | Large automotive parts, heavy fixtures |
GMC2018 | - 1600×2200mm table, 2200×2000×1000mm travel | Aerospace structures, large die casting |
GMC2518 | - 1600×2700mm table (max in series), 2700×2000×800mm travel | Shipbuilding components, heavy molds |
Shared Technical Advantages
Precision: ±0.003mm positioning accuracy, Ra≤0.8μm surface finish
Performance: 6000rpm BT50 spindle, 24-tool Okada/AIMACH ATC (≤1.8s tool change)
Reliability: NACHI bearings, Schneider electrics, Taiwan HIWIN/PMI guides/screws
Optional Upgrades
ZF reduction gearhead (1.5:1 ratio for high torque)
4th-axis rotary table for multi-face machining
High-pressure cooling system for deep-hole drilling
Why Choose GMC Series?
Scalable Capacity: Table load from 2.5t to 7t, adapting to diverse workpiece sizes
Heavy-Duty Design: Rigid gantry structure minimizes vibration for large-part stability
Global Compatibility: FANUC/Mitsubishi controls support international programming standards
Contact us for custom configurations or detailed technical data-sheets!
Technical Parameters | Units | GMC1614 | GMC2014 | GMC2018 | GMC2518 |
Working Table Size (Width×Length) | mm | 1200×1600 | 1200×2000 | 1600×2200 | 1600×2700 |
Working table moving direction travel (X axis) | mm | 1600 | 2200 | 2200 | 2700 |
Working table moving direction travel (Y axis) | mm | 1500 | 1500 | 2000 | 2000 |
Working table moving direction travel (Z axis) | mm | 1000 | 1000 | 1000 | 800 |
Gantry Width | mm | 1500 | 1500 | 1800 | 1800 |
Gantry Height | mm | 1260 | 1260 | 1260 | 1160 |
Distance from spindle nose to work table | mm | 150~1150 | 150~1150 | 140~1140 | 250~1050 |
Worktable T-slots | number-size | Middle 5-22×195, | Middle 5-22×195, Sides 1-22×145 | 7-22×200 | 7-22×200 |
Spindle Specifications | model/ | BT50/φ190 | BT50/φ190 | BT50/φ190 | BT50/φ190 |
Spindle transmission | r/min | 6000 | 6000 | 6000 | 6000 |
Spindle transmission | - | Pulley ratio 1: 1 | Pulley ratio 1: 1 | Pulley ratio: 1.5: 1 as standard (Optional 1: 1) | Pulley ratio 1.5: 1 as standard (Optional 1: 1) |
X-axis Ball Screw | - | 5010 | 6310 | 6310 | 6310 |
Y-axis Ball Screw | - | 5010 | 5010 | 5010 | 5010 |
Z-axis Ball Screw | - | 5010 | 5010 | 5010 | 5010 |
X-axis Guide | - | Roller 45 (Optional 55) | Roller 45 (Optional 55) | Roller 55 | Roller 55 |
Y-axis Guide | - | Roller 45 (Optional 55) | Roller 45 (Optional 55) | Roller 55 | Roller 55 |
Z-axis Guide | - | Rectangular Slide Rail | Rectangular Slide Rail | Rectangular Slide Rail | Rectangular Slide Rail |
X, Y, Z axis servo electric transmission | - | X, Y, Z axis direct coupling | X, Y, Z axis direct coupling | X, Y, Z axis direct coupling | X, Y, Z axis direct coupling |
Spindle motor selection | kW | 22KW wide area motor | 22KW wide area motor | 22KW wide area motor | 22KW wide area motor |
X-axis Servo Torque | N·m | 38 | 38 | 38 | 38 |
Y-axis Servo Torque | N·m | 30 | 30 | 30 | 30 |
Z-axis Servo Torque | N·m | 30 (holding brake)） | 30 (holding brake)） | 30 (holding brake)） | 30 (holding brake)） |
Fast Feed Speed | m/min | 16 | 16 | 16 | 16 |
Cutting Feed Rate | m/min | 10 | 10 | 10 | 10 |
Machine Dimensions (L×W×H) | mm | 4700×3400×4050 | 5500×3400×3700 | 5500×3800×3800 | 6500×3800×3700 |
Workbench Load Bearing | t | 2.5 | 3.5 | 4 | 7 |
Machine Weight | t | 15 | 17 | 19 | 25 |
Equipment configuration model parameters | |||||
Resin sand precision castings | - | HT300 | HT300 | HT300 | HT300 |
Controller | - | FANUC/Mitsubishi M80B | FANUC/Mitsubishi M80B | FANUC/Mitsubishi M80B | FANUC/Mitsubishi M80B |
Servo drives, motors | - | System matching | System matching | System matching | System matching |
Spindle motor | - | 22KW | 22KW | 22KW | 22KW |
Linear Guide Brand | - | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI |
Ball screw Brand | - | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI |
Tool magazine(ATC) | - | 24pcs (Okada/AIMACH) | 24pcs (Okada/AIMACH) | 24pcs (Okada/AIMACH) | 24pcs (Okada/AIMACH) |
Three-axle bearing | - | NACHI | NACHI | NACHI | NACHI |
spindle Brand | - | BT50-190-6000 (Cells) | BT50-190-6000 (Cells) | BT50-190-6000 (Cells) | BT50-190-6000 (Cells) |
Knife cylinder | - | 6.5 (Airtac) | 6.5 (Airtac) | 6.5 (Airtac) | 6.5 (Airtac) |
Bottom plate chip | √ | Made in china | Made in china | Made in china | Made in china |
Manual chip removal tank | √ | Made in china | Made in china | Made in china | Made in china |
Outer protective cover | √ | Made in china | Made in china | Made in china | Made in china |
Three-axis inner shield | √ | Liuding | Liuding | Liuding | Liuding |
Lubricating oil pump | √ | HERG | HERG | HERG | HERG |
Cooling pump | √ | 750W Wesson | 750W Wesson | 750W Wesson | 750W Wesson |
Electrical component | √ | Schneider | Schneider | Schneider | Schneider |
Machine tool heat exchanger | √ | Made in china | Made in china | Made in china | Made in china |
Pneumatic triplet | √ | Airtac | Airtac | Airtac | Airtac |
Oil cooler | √ | Diort | Diort | Diort | Diort |
Chip Removal Machine | √ | Spiral（Made in china） | Spiral（Made in china） | Spiral（Made in china） | Spiral（Made in china） |
